槍與配件適用于泰克莫
專利號：ZL202130291873.3

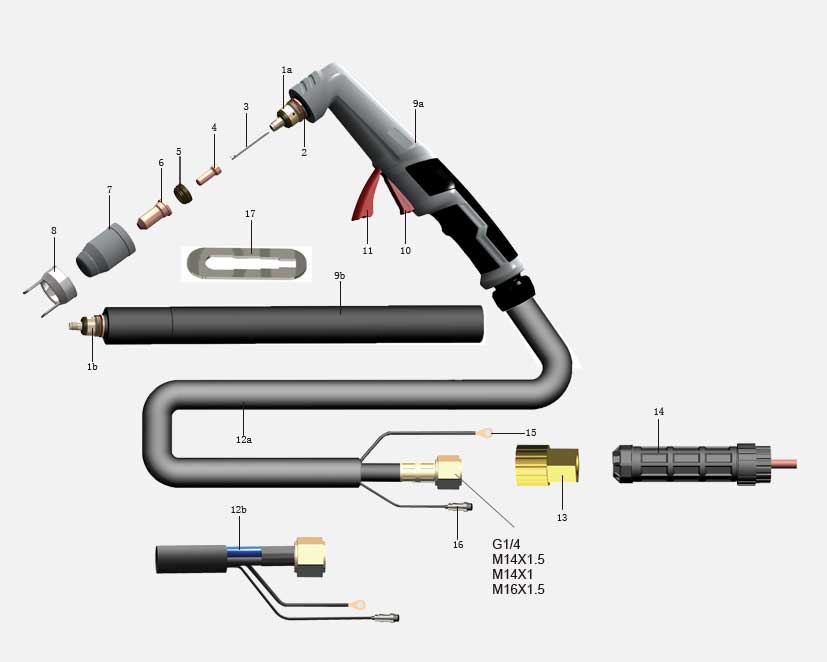

| No. | Order | 描述 | OEM p/n |

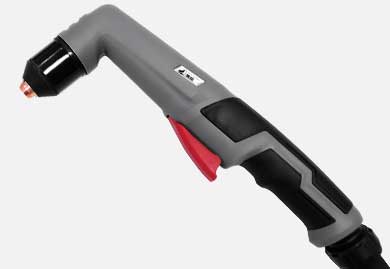

| PTC0300.05 | BW PT-120 手用切割槍 M16×1.5, 5 米 | ||
| PTC0301.05 | BW PT-120 手用切割槍 中央插頭, 5 米 | ||

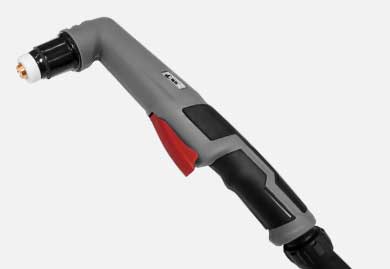

| PTC0500.05 | BW PTM-120 機用切割槍 M16×1.5, 5 米 | ||
| PTC0501.05 | BW PTM-120 機用切割槍 中央插頭, 5 米 | ||
| 1a | PTC0310 | BW PT-120 手用槍頭 | |
| 1b | PTC0511 | BW PTM-120 機用槍頭 | |
| 2 | PTC0313 | O 形圈 | |
| 3 | PTC0330 | 氣冷卻管 | 09700.48 |
| 4 | PTC0331 | 電極 | 52556 |
| 5 | PTC0336.01 | 渦流環30A-70A | 60025 |
| PTC0336.02 | 渦流環80A-120A | 60026 | |
| 6 | PTC0332.01 | 噴嘴 1.0mm 40-50A | 51246.10 |
| PTC0332.02 | 噴嘴 1.1mm 50-60A | 51246.11 | |
| PTC0332.03 | 噴嘴 1.2mm 60-70A | 51246.12 | |
| PTC0332.04 | 噴嘴 1.4mm 80-90A | 51248.14 | |
| PTC0332.05 | 噴嘴 1.5mm 100A | 51248.15 | |
| PTC0332.06 | 噴嘴 1.6mm 100A-120A | 51248.16 | |
| 7 | PTC0334.01 | 保護罩 30A-70A | 60500 |
| PTC0334.02 | 保護罩 80A-120A | 60501 | |
| 8 | PTC0334.01 | 保護罩隔離圈 | 60444 |
| 9a | PTF0220.01 | 手用切割手把 ( 黑灰) | |
| 9b | PTF1021 | ?35 機用切割手把 | |
| 10 | PTF0224.01 | 開關 | |
| 11 | PTF0224.03 | 開關保護擋片 | |
| 12a | PTC0350 | 氣電一體電纜 | |
| 12b | PTC0351 | 氣電分體電纜 | |
| 13 | PPA0170 | 螺母套 | |
| 14 | PTF0272 | 中央插頭 | |
| 15 | PPA0169 | 引弧線 | |
| 16 | PPA0171 | 2 芯插頭 | |
| 17 | PTC033A | 扳手 |
* 訂購說明：訂購時請說明后接形式。
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
